Andersen E-Series Bay & Bow Windows
Projecting windows that turn a small room into a bright one — panoramic views, light from three directions, and fifty exterior colors to choose from.
Made in the USA ENERGY STAR® certified Owner-2-Owner® warranty
Overview
Why choose the E-Series Bay & Bow Windows?

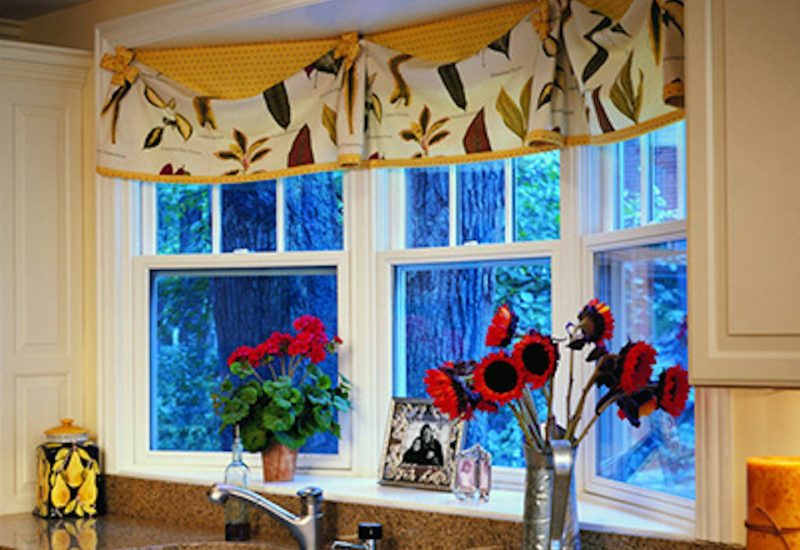

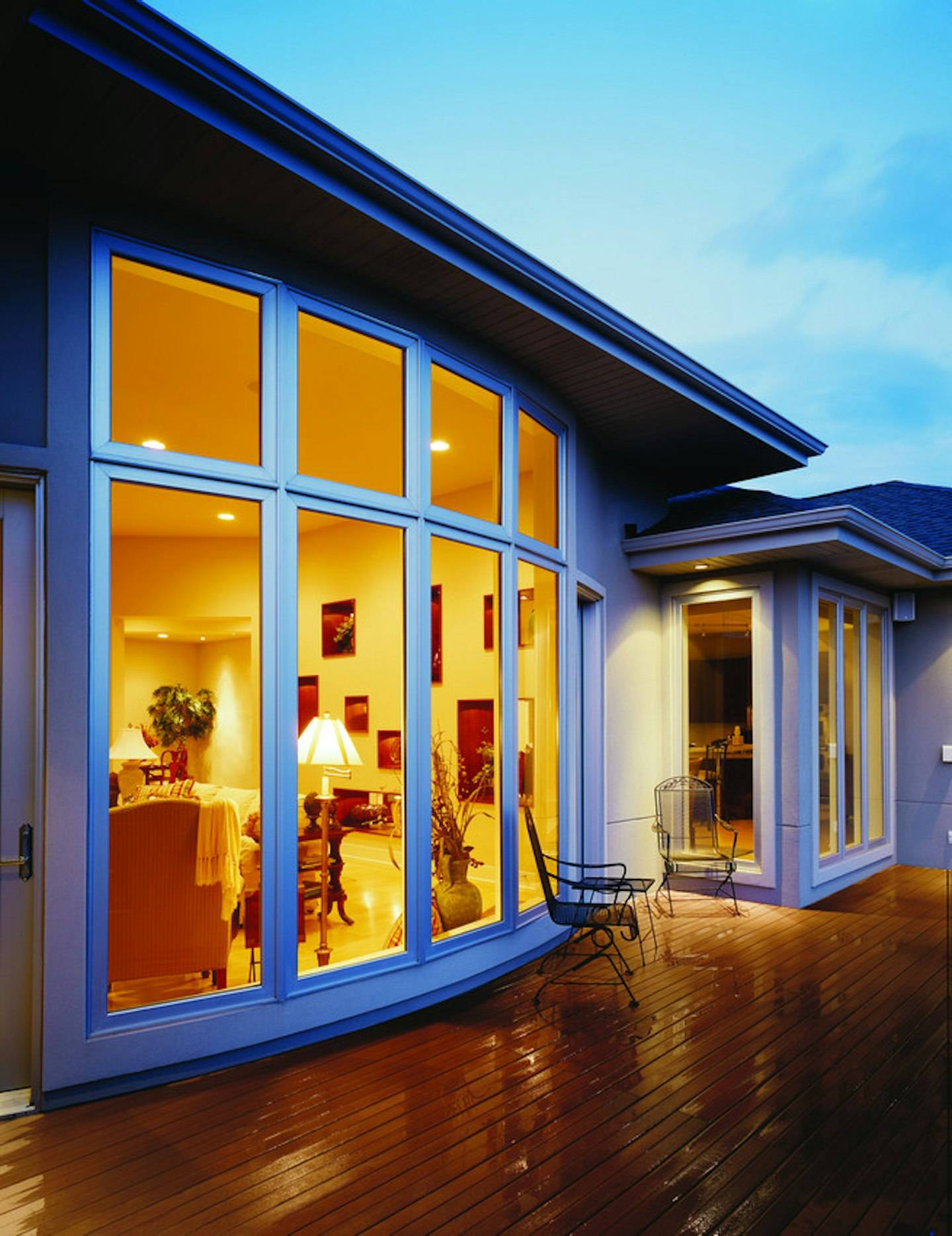

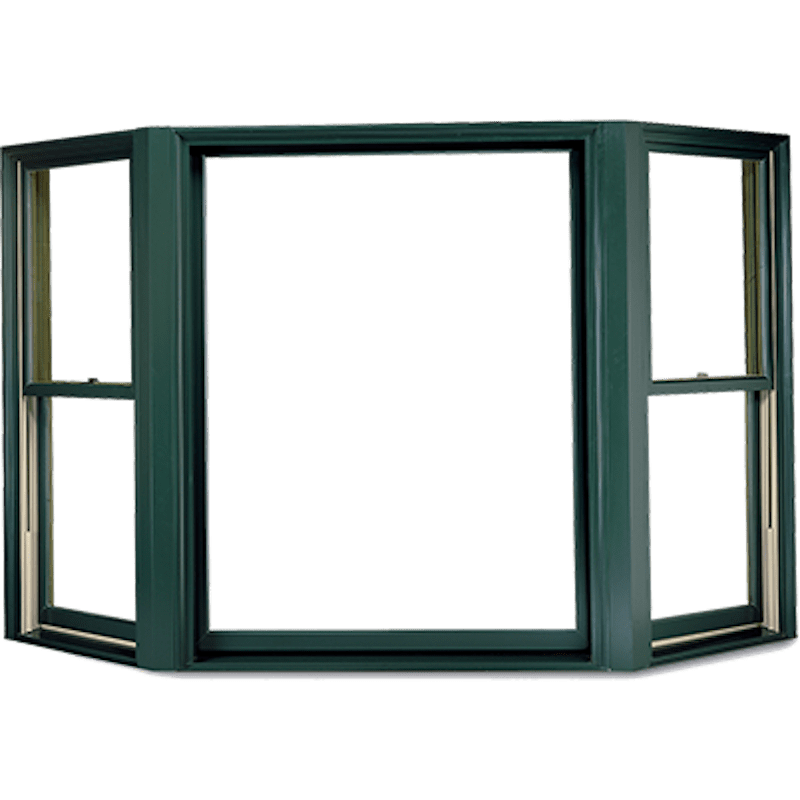

Bay and bow windows project outward from the wall, adding floor space, a natural window seat and light from multiple directions. Bays use three units set at 30°, 45° or 90°; bows curve gently with four or more casement units at 10°. The Andersen E-Series is the fully custom line — wood interiors in ten species, aluminum-clad exteriors in fifty colors and seven anodized finishes, multi-tone combinations and custom color matching — so the window can be as traditional or as modern as the house around it.
Features at a glance
- Casement configurations: 30° and 45° angle bay, 90° box bay and 10° bow
- Double-hung configurations: 30° and 45° angle bay
- Wood interior protected by an aluminum-clad exterior
- Custom colors, interior wood species and factory stains
- Full divided light, simulated divided light and removable interior grilles
- Owner-2-Owner® limited warranty; Made in the USA; ENERGY STAR® certified
Options
Customize your E-Series Bay & Bow Windows
Every window is built to order. Pick the combination that fits your home and we’ll confirm availability, pricing and lead time at your free consultation.
The E-Series is Andersen’s fully custom line — if you can imagine the color, we can usually order it.
Interior Wood Options
Factory-Finished Stain Options
Painted Interiors
Exterior Color
Factory finishes: Clear Coat, Autumn Oak, Honey, Russet, Espresso, Wheat, Golden Hickory, Cinnamon, Mocha, Birch Bark and White basecoat, or primed for painting on site.
Hardware Colors
Hardware Styles
Grilles add architectural character and can be matched to the style of your home. Choose the grille construction first, then the pattern.
Full divided light
Interior and exterior grilles with an aluminum spacer between the glass — the authentic, historic look.
Simulated divided light
Fixed exterior and interior grilles without an internal spacer — traditional beauty at an economical price.
Removable interior wood
Interior wood grilles, with an optional surround and an optional permanently applied exterior grille.
Finelight™ between-the-glass
Aluminum grilles sealed between the panes for easy cleaning.
Grille patterns
Every Andersen E-Series unit can be ordered with the glass package that fits its exposure. All options are ENERGY STAR® certified configurations; ask us about impact-rated glass for coastal wind zones.
SmartSun™ glass
All the benefits of Low-E glass plus extra protection from the Florida sun — it filters out 95% of harmful UV rays while letting daylight through. Our most-recommended glass for North Florida.
Low-E4® glass
Reflects summer heat away and helps hold conditioned air inside, a strong all-around choice where cooling costs matter most.
HeatLock® coating
An interior-surface coating that reflects escaping heat back into the room. Can be added to most Andersen glass options.
PassiveSun® glass
Lets the sun help warm your home in winter — best suited to shaded or north-facing openings.
Low-E4® Sun glass
A subtle tint that blocks even more solar heat — ideal for west-facing walls and pool decks.
Triple-pane glass
Three panes for the highest insulation and sound control — a favorite near busy roads.
Decorative & specialty glass
Patterned, obscure and art glass for bathrooms, entries and accent windows, plus tempered safety glass where code requires it.
Every window includes an insect screen; upgrade to TruScene® for a nearly invisible view.
Insect screens
Charcoal fiberglass mesh in an aluminum frame finished in any of the 50 E-Series exterior colors. Aluminum mesh and wood-veneered screen frames are also available.
TruScene® insect screen
Andersen’s exclusive TruScene® screens provide over 50% more clarity than conventional screens, let in more light and air, and keep out smaller insects.
Bay & bow configurations
Interior & exterior trim
Wood casings
Fluted, Colonial and Ranch casing profiles in every wood species, with optional plinth blocks at the corners.
2-, 3- and 4-tone exteriors
Mix up to four of the 50 exterior colors on frame, sash and trim for a look that’s entirely your own.
Specifications
Product specs
| Brand | Andersen |
|---|---|
| Series | E-Series |
| Window style | Bay and bow |
| Exterior color | 50 exterior colors and 7 anodized finishes, custom color match available |
| 2-, 3- and 4-tone exteriors | Yes |
| Composition | Wood interior, aluminum-clad exterior |
| Interior wood species | Pine, Oak, Walnut, Hickory, Vertical-grain Douglas fir, Mixed-grain Douglas fir, Maple, Alder, Mahogany, Cherry |
| Interior finish | Clear Coat, Autumn Oak, Honey, Russet, Espresso, Birch Bark, Wheat, Golden Hickory, Cinnamon, Mocha, White basecoat, Primed |
| Uniform sight lines | Yes |
| Extension jamb | Pre-installed dimensional extension jambs in all wood species |
| Security sensors | No |
| Construction type | New build, remodel, replacement |
| Custom sizes | Yes — measured in ⅛" increments |
| Angle configurations | 10°, 30°, 45° and 90° |
| Minimum width | 35½" |
| Maximum width | 147 7/16" |
|---|---|
| Minimum height | 36" |
| Maximum height | 72" |
| Jamb depth | 4 9/16" |
| Sash construction | Single layer of compression bulb weatherstripping |
| Power operator | No |
| ENERGY STAR® certified | Yes |
| NFRC ratings | Yes |
| WDMA Hallmark certification | Yes |
| AAMA certification | Yes |
| Glass warranty | 20 years |
| Glass-breakage warranty | No |
| Non-glass warranty | 10 years |
| Window opening control device | Depends on window style |
| Retractable insect screen | Depends on window style |
More from Andersen

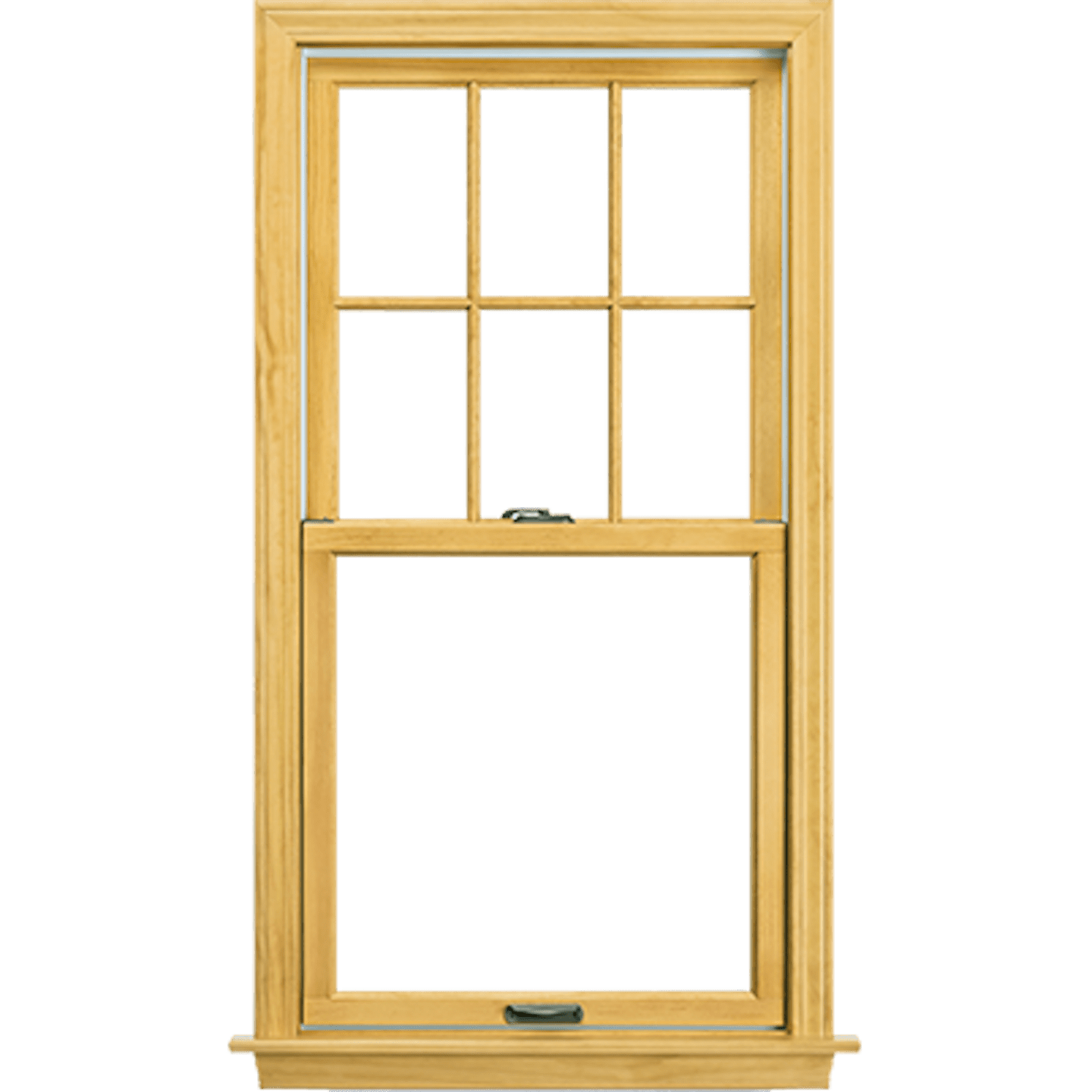

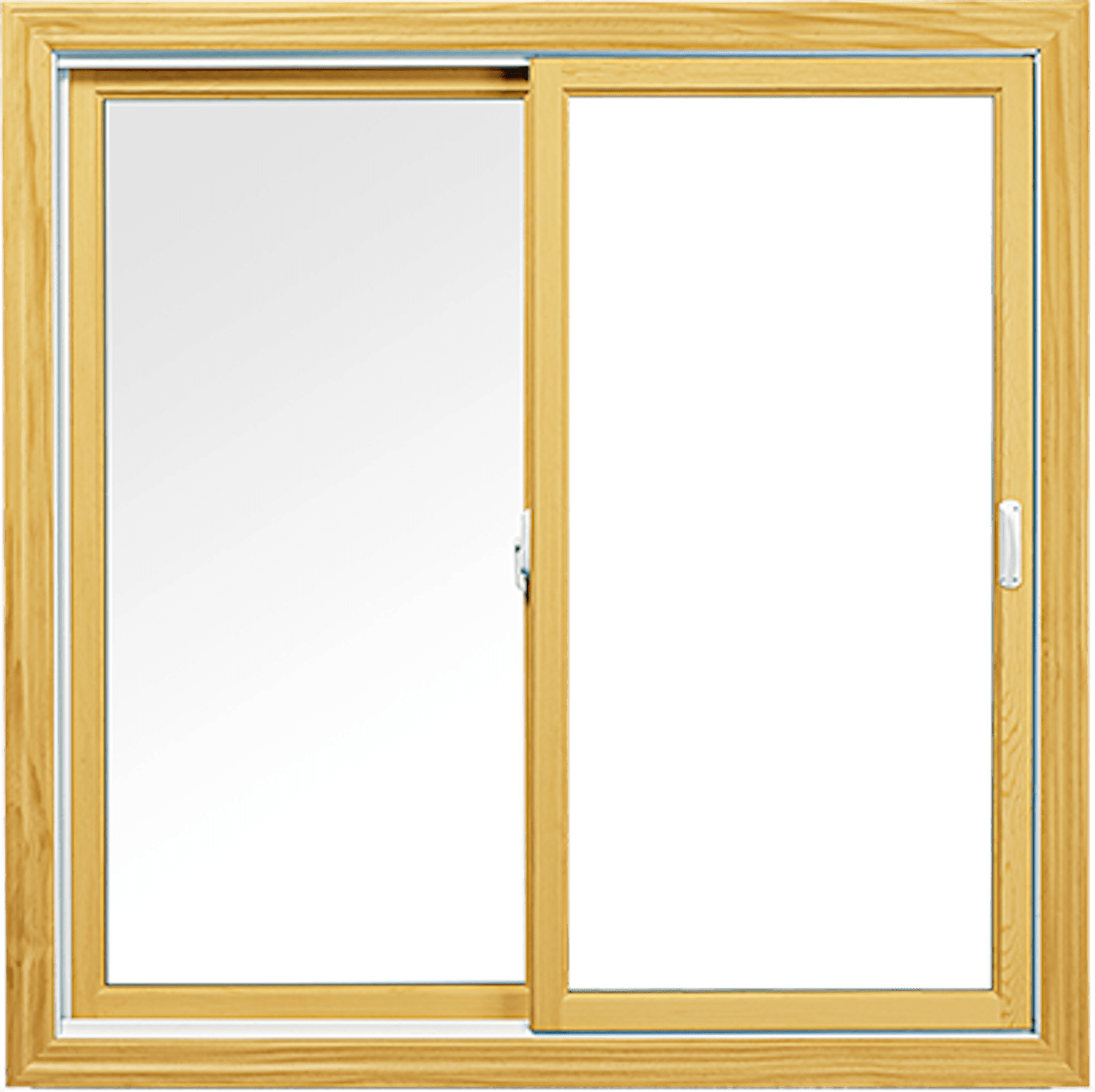

Other Andersen windows we install
